Custom Evaluators

While Maxim offers a comprehensive set of evaluators in the Store, you might need custom evaluators for specific use cases. This guide covers four types of custom evaluators you can create:

AI-based evaluators
API-based evaluators
Human evaluators
Programmatic evaluators

AI-based Evaluators

Create custom AI evaluators by selecting an LLM as the judge and configuring custom evaluation instructions.

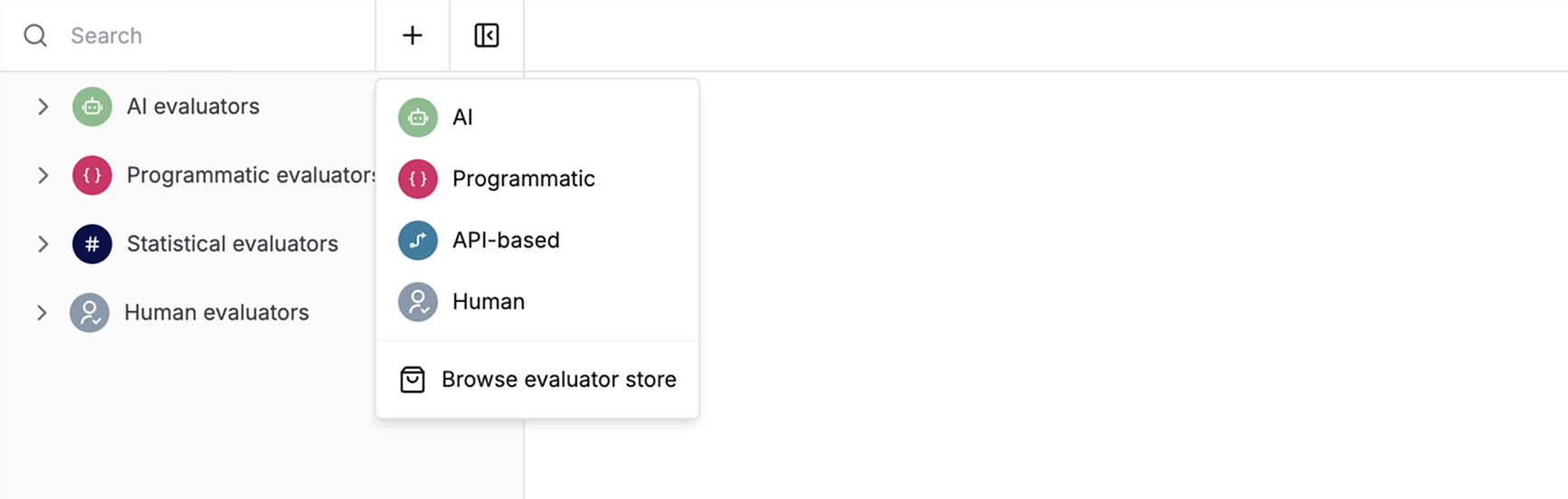

Create new Evaluator

Click the create button and select AI to start building your custom evaluator.

Configure model and parameters

Select the LLM you want to use as the judge and configure model-specific parameters based on your requirements in the Definition tab.

Model configuration for custom AI evaluator

Choose evaluation scale

Select the evaluation scale from the dropdown:

Binary (Yes/No): Returns true or false
Scale of 1 to 5: Returns a numeric score from 1 to 5
String values: Returns a string value
Number: Returns a numeric score

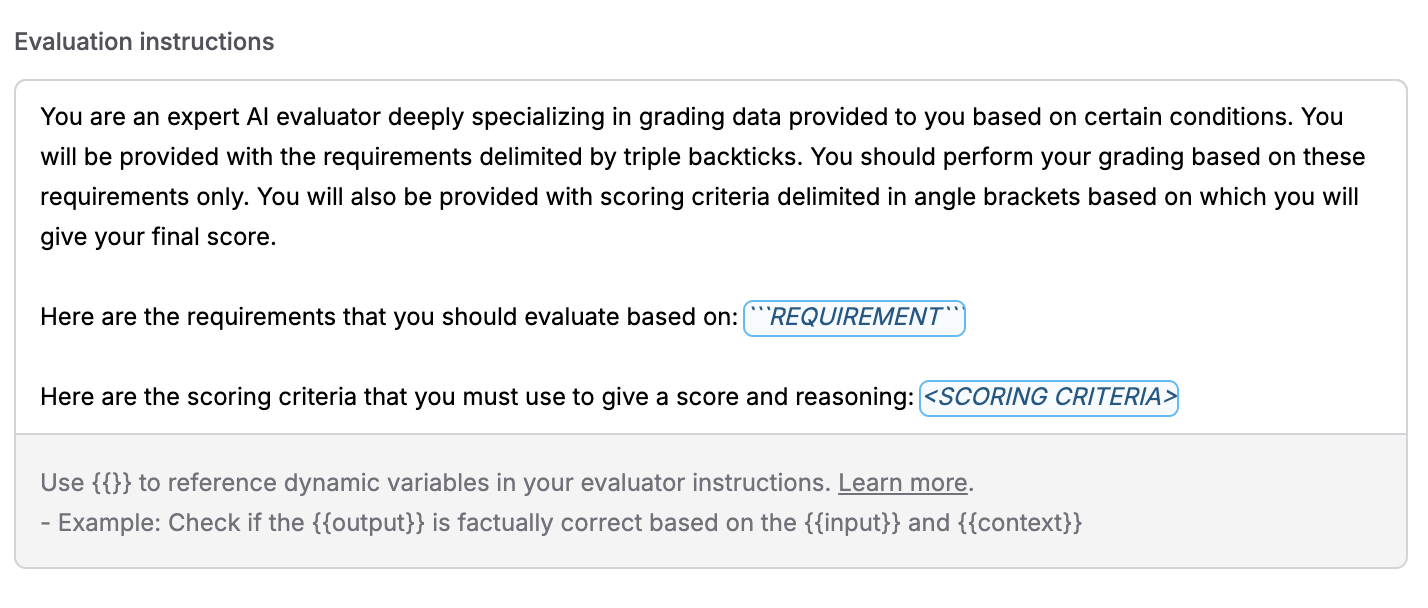

Configure evaluation instructions

In the Evaluation instructions field, write the instructions that tell the AI evaluator how to judge the outputs. You can use variables like {{input}}, {{output}}, {{context}} to reference dynamic values from your dataset or logs. These variables will be automatically replaced with actual values during evaluation.Example for Scale evaluation:

Check if the text uses punctuation marks correctly to clarify meaning.

Use the following scales to evaluate:
Punctuation is consistently incorrect or missing; hampers readability
Frequent punctuation errors; readability is often disrupted
Some punctuation errors; readability is generally maintained
Few punctuation errors; punctuation mostly aids in clarity
Punctuation is correct and enhances clarity; no errors

Example for Binary evaluation:

Check if the {{output}} is factually correct based on the {{input}} and {{context}}.

Respond with a yes if the answer meets all the requirements above; if the answer doesn't match with any one of the above requirements, respond with a no.

Variables are highlighted in the editor and can be inserted using the suggestions dropdown. The placeholders REQUIREMENT and <SCORING CRITERIA> are also highlighted when present in your instructions if you’re using the default template structure.

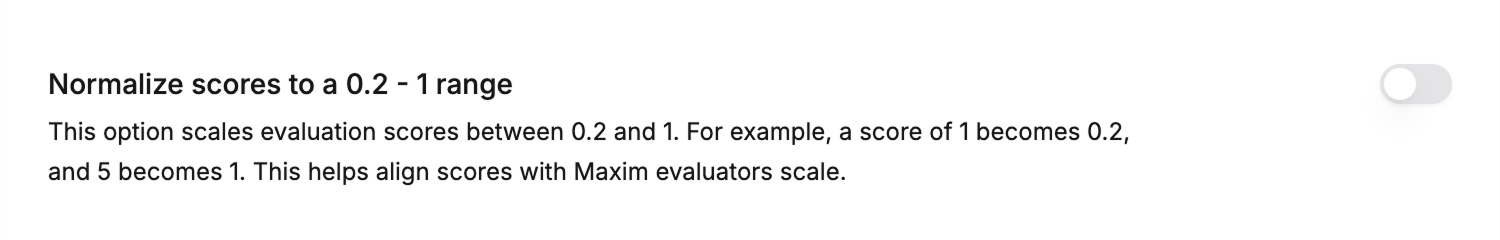

Normalize score (Optional)

Convert your custom evaluator scores from a 1-5 scale to match Maxim’s standard 0-1 scale. This helps align your custom evaluator with pre-built evaluators in the Store.For example, a score of 4 becomes 0.8 after normalization.

Score normalization toggle for AI evaluators

Understanding the AI Evaluator Interface

The AI evaluator editor is organized into three main tabs:

Definition Tab

The Definition tab is where you configure your AI evaluator:

Model selection: Choose the LLM you want to use as the judge
Model configuration: Configure model-specific parameters (temperature, max tokens, etc.)
Evaluation scale: Select the scoring type (Binary, Scale, String values, or Number)
Evaluation instructions: Write the instructions that tell the AI how to evaluate outputs
Score normalization (optional): Convert scores from 1-5 scale to 0-1 scale for Scale evaluations

Variables Tab

The Variables tab shows all available variables for your evaluator:

Reserved variables: These are built-in variables provided by Maxim that you can use in your evaluator instructions:
- input: Input query from dataset or logged trace
- output: Output from the test run or logged trace
- context: Retrieved context from your data source
- expectedOutput: Expected output as mentioned in dataset
- expectedToolCalls: Expected tools to be called as mentioned in dataset
- toolCalls: Actual tool calls made during execution
- toolOutputs: Outputs of all tool calls made
- prompt: Content of all messages in the prompt version
- scenario: Scenario for simulating multi-turn session
- sessionOutputs: Agent outputs across all turns of the session
- session: A sequence of multi-turn interactions between user and your application
- history: Prior turns in the current session before the latest input
- expectedSteps: Expected steps to be followed by the agent as mentioned in dataset
Custom variables: You can define additional custom variables if needed

Variables are automatically replaced with actual values during evaluation execution.

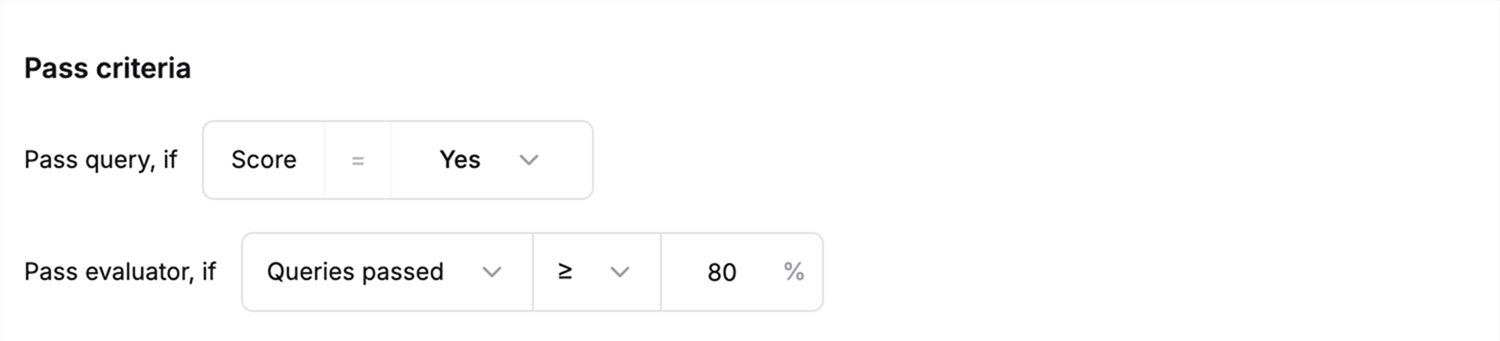

Pass Criteria Tab

The Pass Criteria tab allows you to configure when an evaluation should be considered passing:

Pass query: Define criteria for individual evaluation metrics Example: Pass if evaluation score > 0.8
Pass evaluator (%): Set threshold for overall evaluation across multiple entries Example: Pass if 80% of entries meet the evaluation criteria

API-based Evaluators

Connect your existing evaluation system to Maxim by exposing it via an API endpoint. This lets you reuse your evaluators without rebuilding them.

Navigate to Create Menu

Select API-based from the create menu to start building.

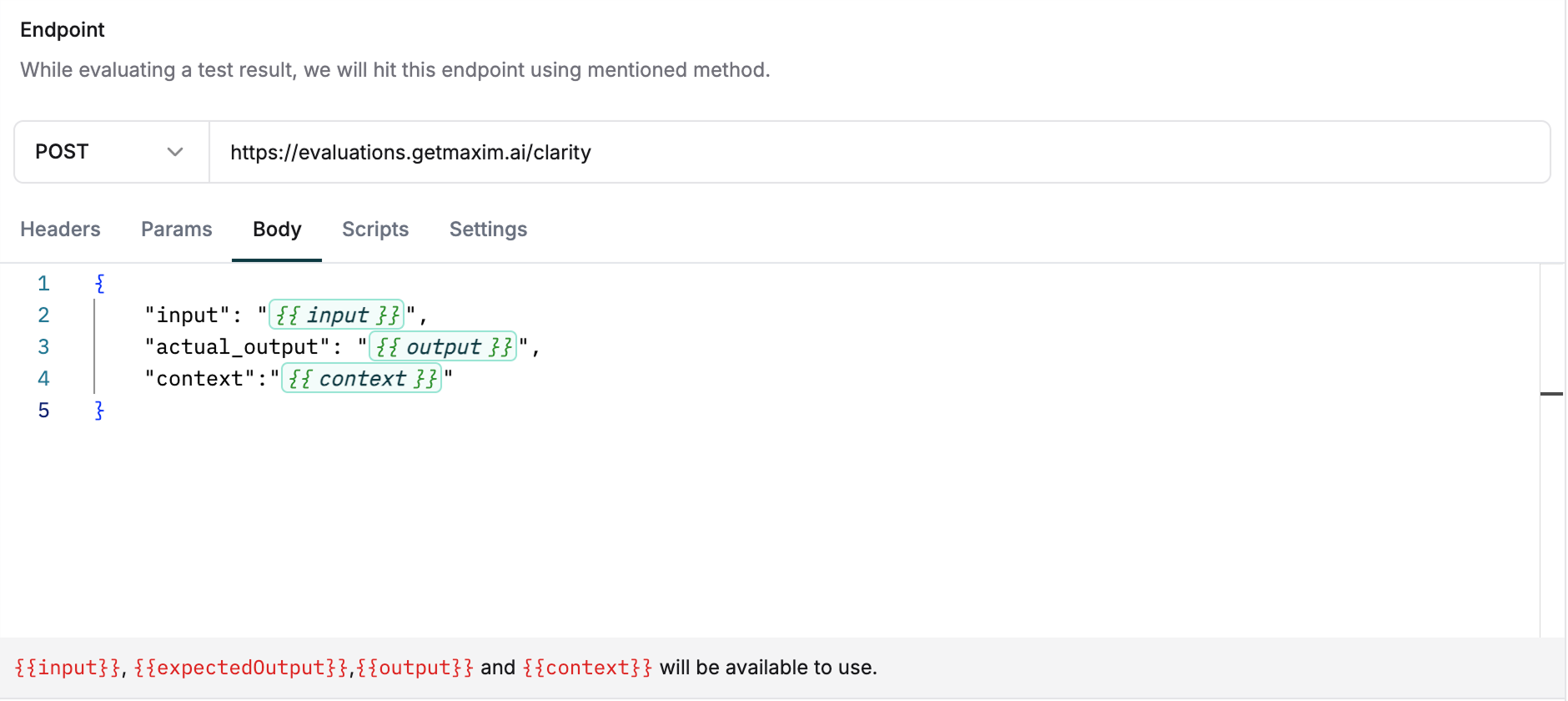

Configure Endpoint Details

Add your API endpoint details including:

Headers
Query parameters
Request body

For advanced transformations, use pre and post scripts under the Scripts tab.

Use variables in the body, query parameters and headers

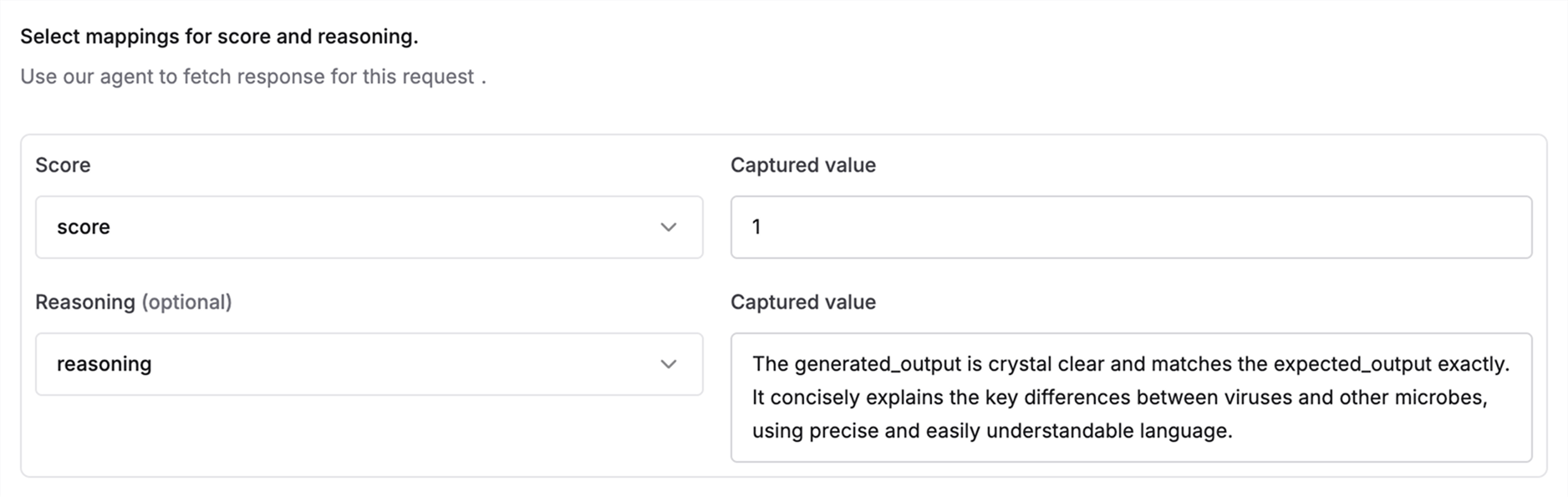

Map Response Fields

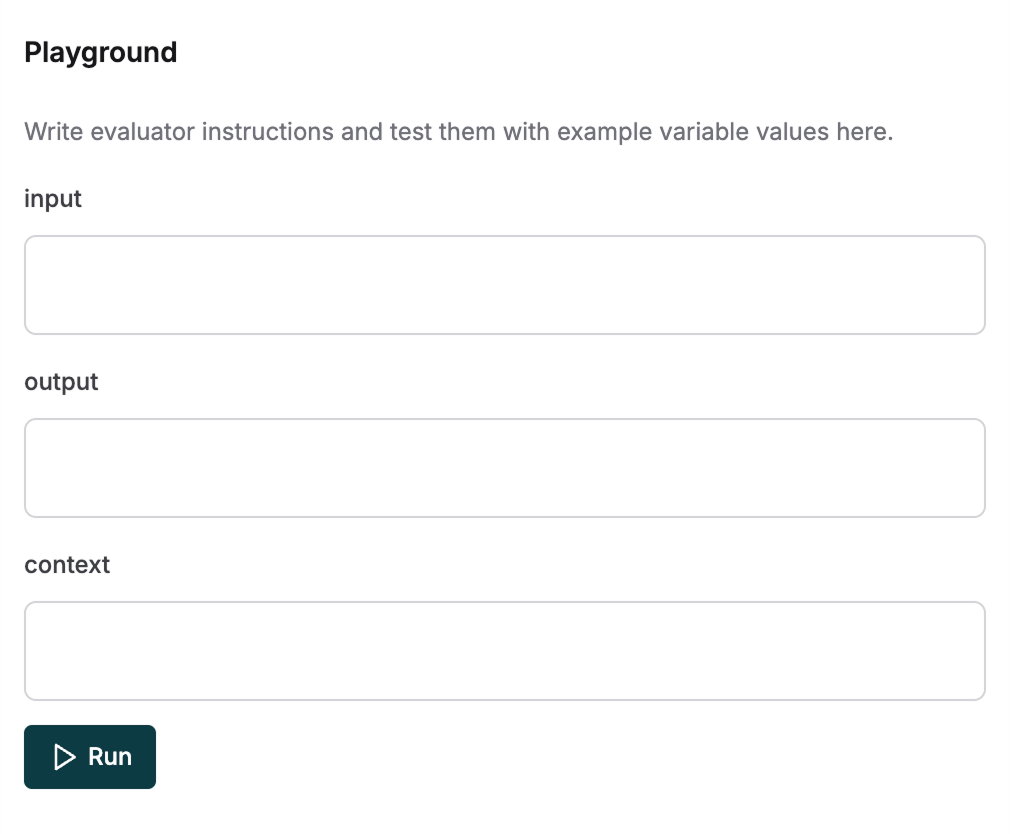

Test your endpoint using the playground. On successful response, map your API response fields to:

Score (required)
Reasoning (optional)

This mapping allows you to keep your API structure unchanged.

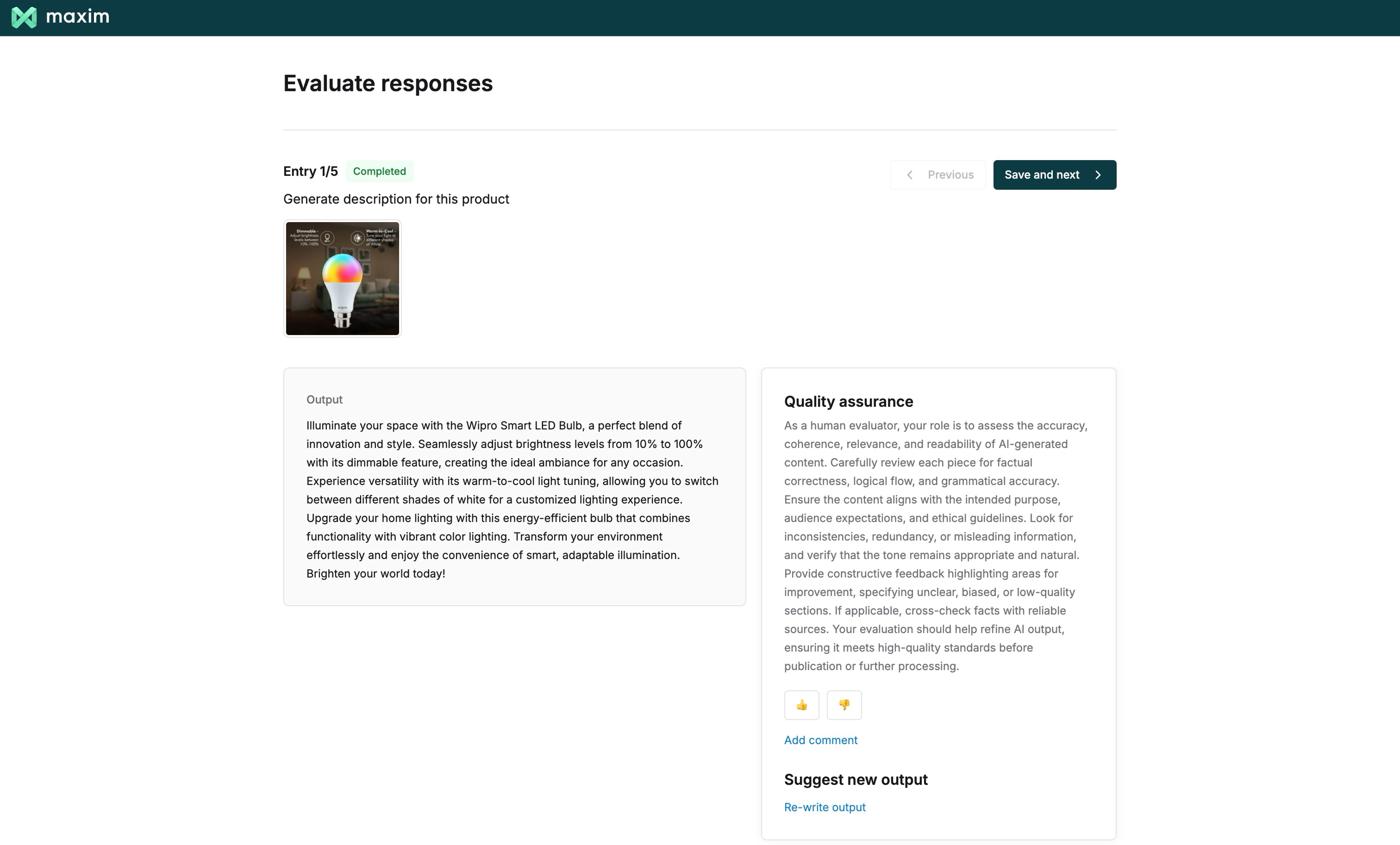

Human Evaluators

Set up human raters to review and assess AI outputs for quality control. Human evaluation is essential for maintaining quality control and oversight of your AI system’s outputs.

Navigate to Create Menu

Select Human from the create menu.

Define Reviewer Guidelines

Write clear guidelines for human reviewers. These instructions appear during the review process and should include:

What aspects to evaluate
How to assign ratings
Examples of good and bad responses

Choose Rating Format

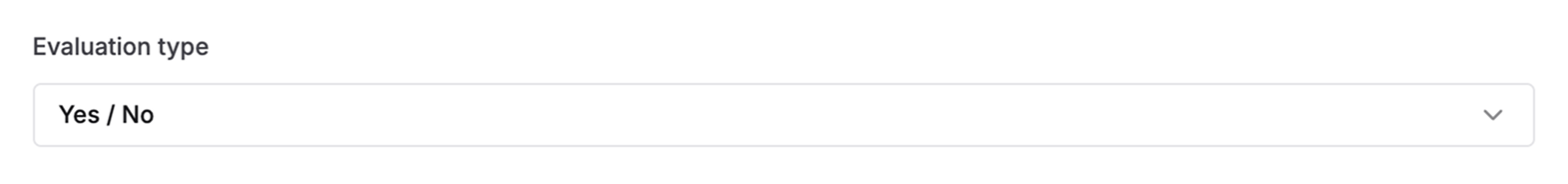

Choose between two rating formats:Binary (Yes/No)Simple binary evaluation

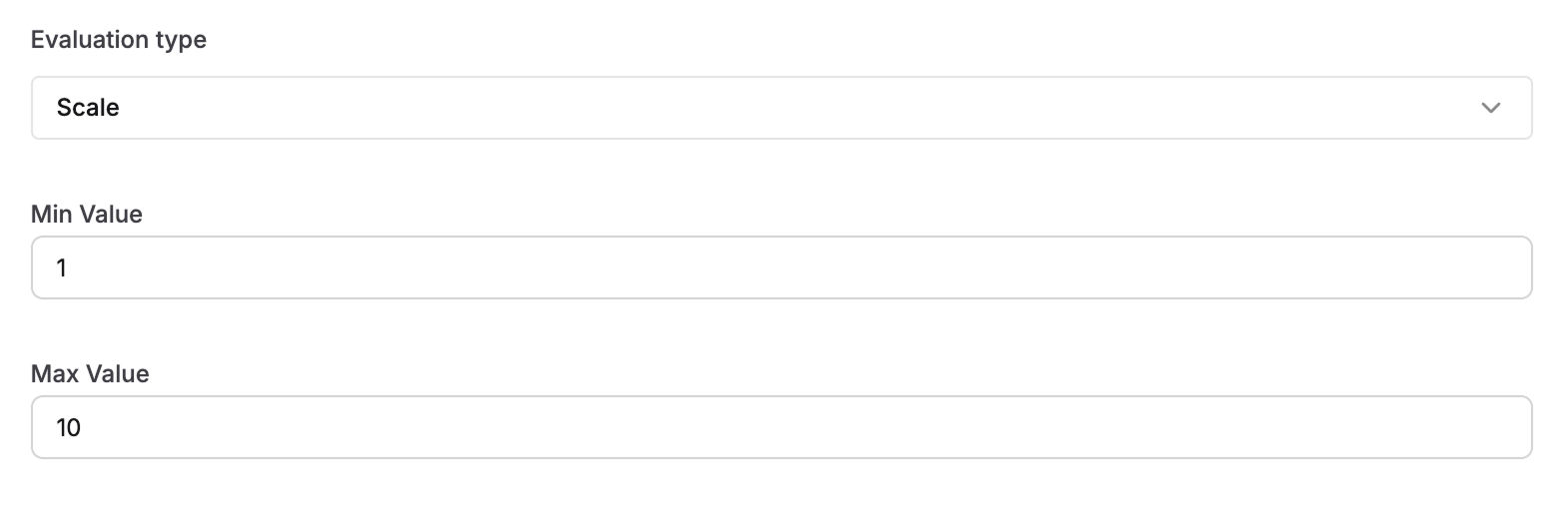

ScaleNuanced rating system for detailed quality assessment

Programmatic Evaluators

Build custom code-based evaluators using Javascript or Python with access to standard libraries.

Navigate to Create Menu

Select Programmatic from the create menu to start building

Select Language and Response Type

Choose your programming language and set the Response type (Number, Boolean, or String) from the top bar. The response type determines what your evaluator function should return:

Boolean: Returns true or false (Yes/No evaluation)
Number: Returns a numeric score for scale-based evaluation
String values: Returns a string value for multi-select or categorical evaluation

The evaluator result can be a string value when using the “String values” response type. This is useful for categorical evaluations or when you need to return specific string labels rather than numeric scores.

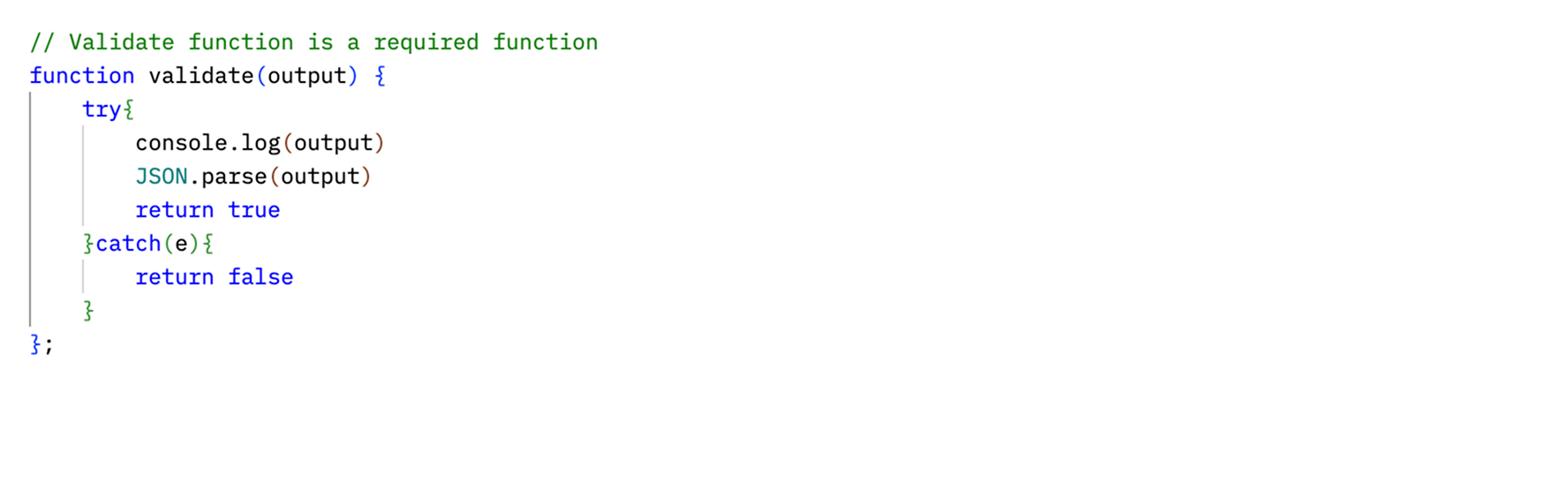

Implement the Validate Function

Define a function named validate in your chosen language. This function is required as Maxim uses it during execution.

Code restrictionsJavascript

No infinite loops
No debugger statements
No global objects (window, document, global, process)
No require statements
No with statements
No Function constructor
No eval
No setTimeout or setInterval

Python

No infinite loops
No recursive functions
No global/nonlocal statements
No raise, try, or assert statements
No disallowed variable assignments

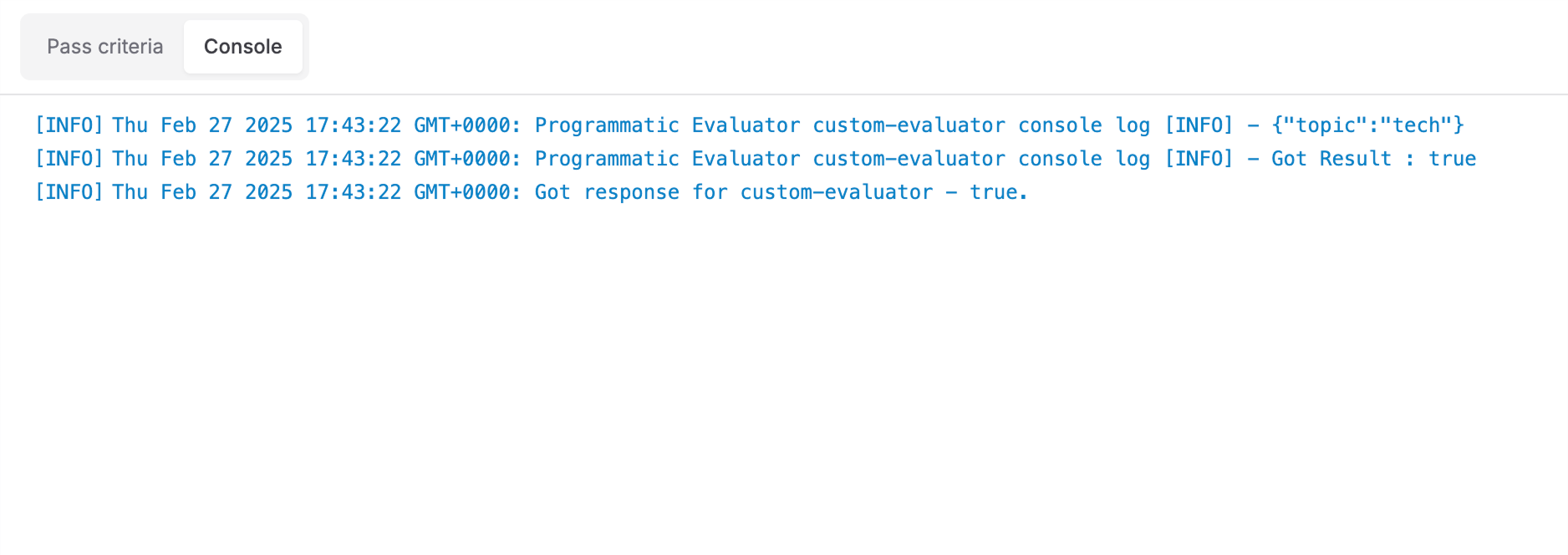

Debug with Console

Monitor your evaluator execution with the built-in console. Add console logs for debugging to track what’s happening during evaluation. All logs will appear in this view.

Console showing debug logs during evaluator execution
