Overview

AWS Bedrock provides a fully managed service to build and deploy AI agents that can interact with your enterprise data and AWS services. With Maxim, you can test these agents at scale using automated simulations to ensure they handle various scenarios correctly before deploying to production. This guide shows you how to:
  1. Create an agent in AWS Bedrock
  2. Set up an agent alias for testing
  3. Deploy a Lambda function to expose your agent as an HTTP endpoint
  4. Connect the endpoint to Maxim
  5. Run automated simulations to test agent behavior

​
Prerequisites

  • An AWS account with access to Bedrock
  • IAM permissions for Bedrock Agent Runtime and Lambda
  • A Maxim account

​
Step 1: Create Your Agent in AWS Bedrock

First, create and configure your agent in AWS Bedrock:
1

Navigate to Amazon Bedrock

  1. Open the AWS Console
  2. Navigate to Amazon Bedrock
  3. Go to Agents in the left sidebar
2

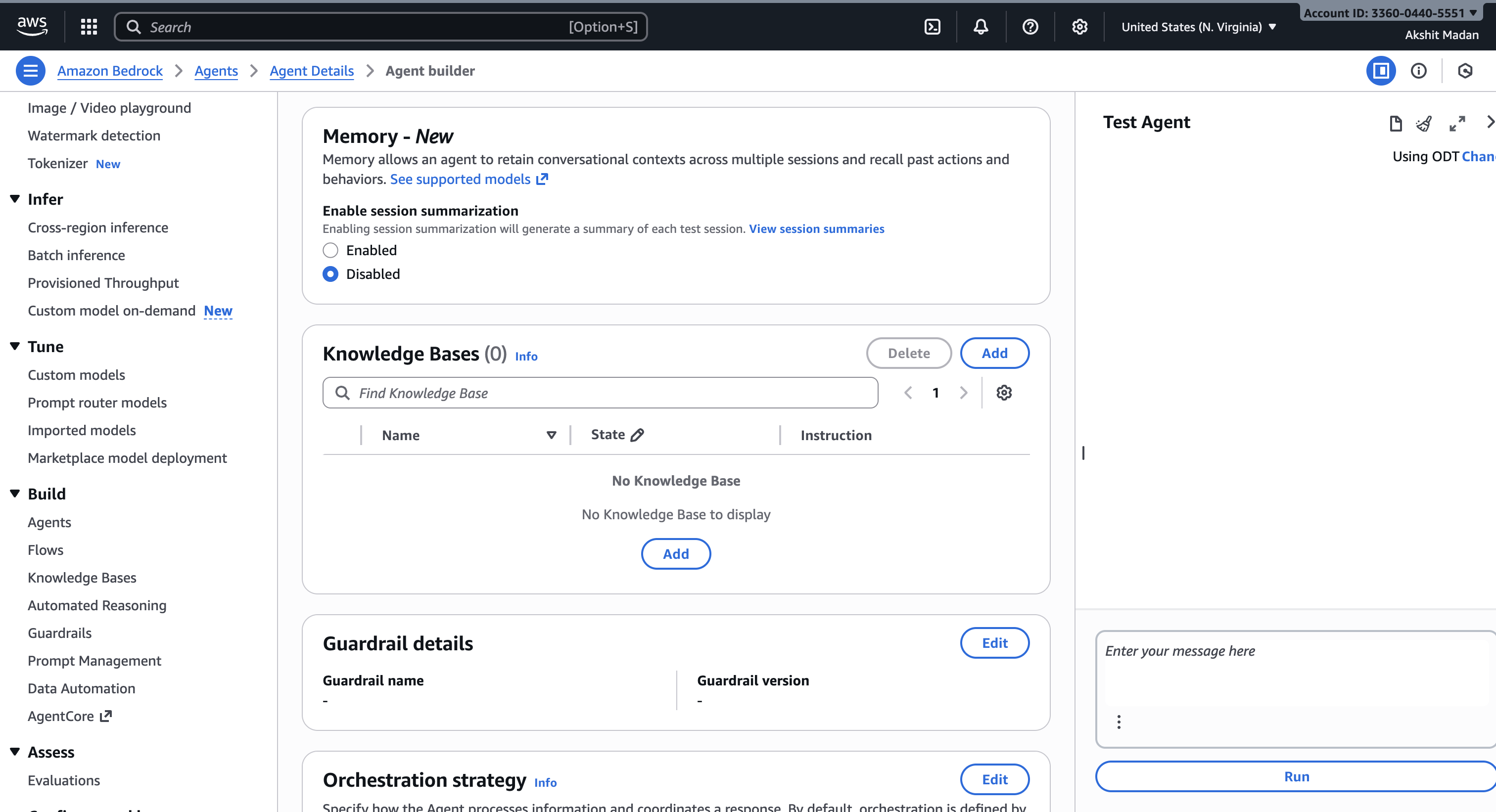

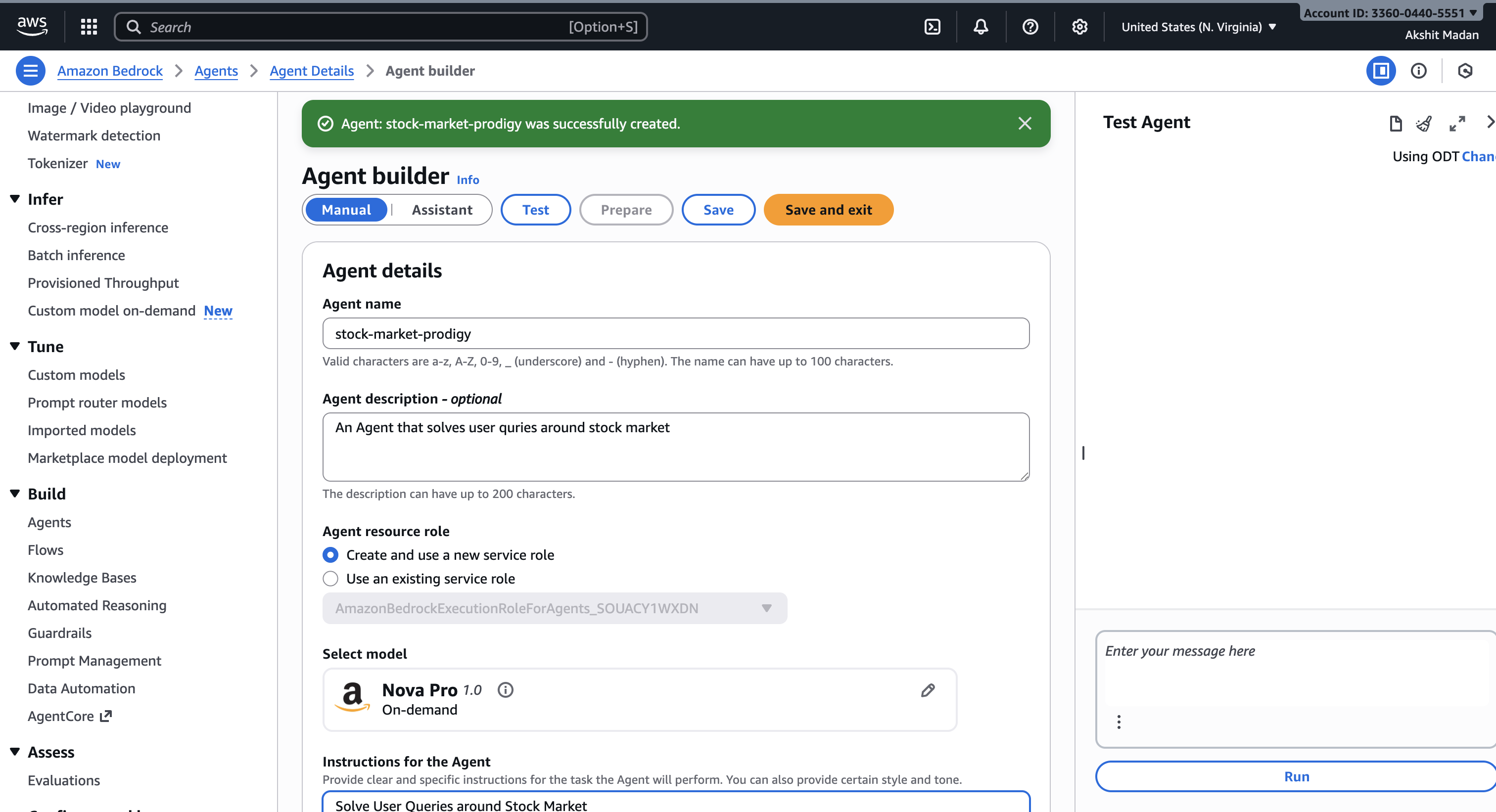

Create a new agent

  1. Click Create Agent Create Agent
  2. Configure your agent:
    • Agent name: Give it a descriptive name (e.g., “FinancialAdvisor”)
    • Description: Describe what your agent does
    • Instructions: Define your agent’s behavior and capabilities
    • Foundation model: Select the model (e.g., Claude 3, Titan)
  3. Add any required Knowledge Bases or Action Groups (tools/APIs your agent can use) Create Agent
  4. Click Create
3

Note your Agent ID

After creation, you’ll see your Agent ID (e.g., 4UDWU64G6Z). Save this - you’ll need it later.

​
Step 2: Create an Alias and Test

Before deploying, create an alias to manage versions:
1

Create an alias

  1. In your agent’s details page, go to Aliases
  2. Click Create alias
  3. Name it (e.g., “test” or “production”)
  4. Select the agent version
  5. Click Create
2

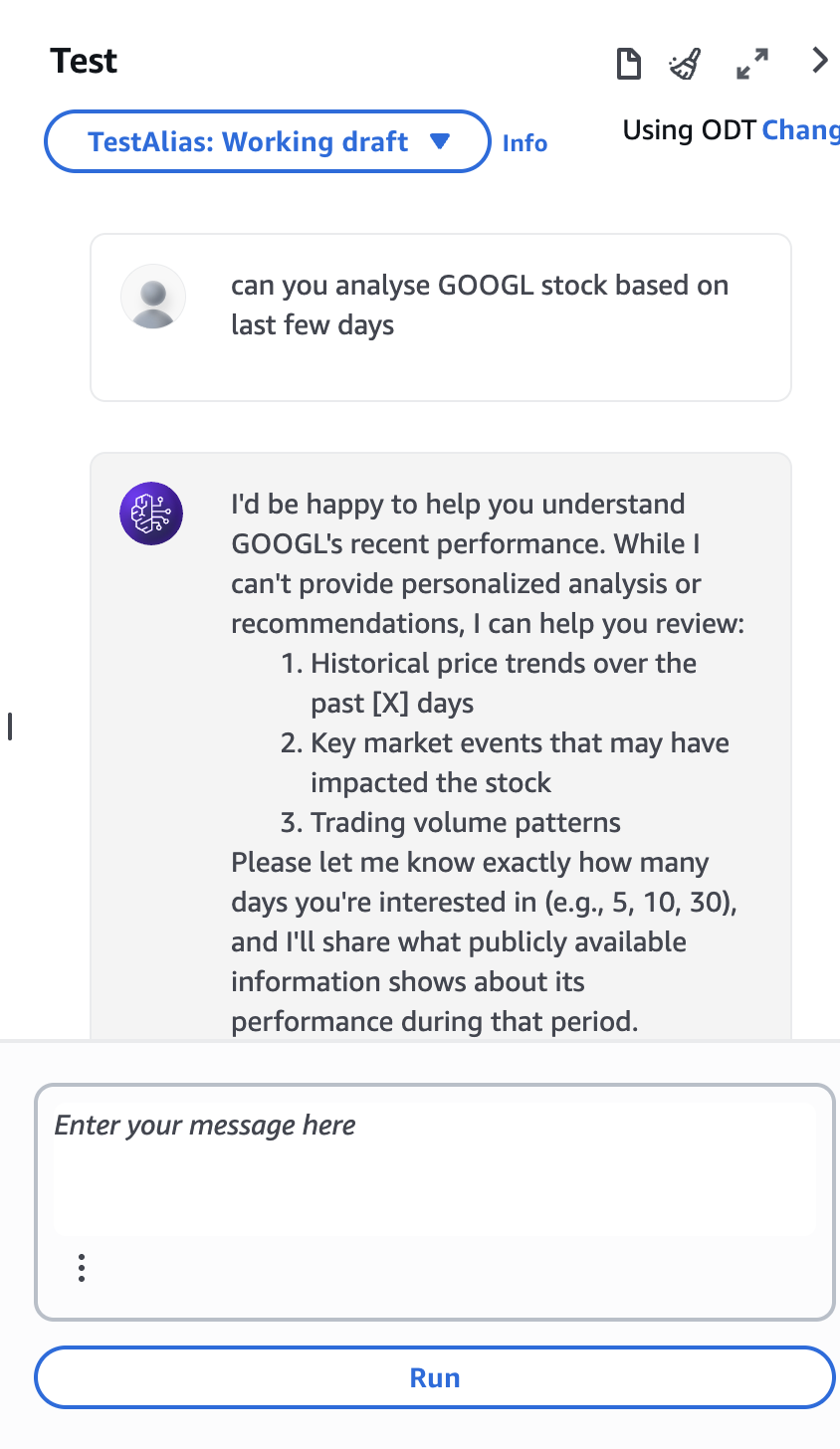

Test your agent

  1. Use the Test button in the Bedrock console
  2. Have a conversation with your agent
  3. Verify it responds correctly and uses tools as expected
  4. Note the Alias ID - you’ll need it for deployment Create Agent

​
Step 3: Deploy Lambda Function as HTTP Endpoint

Create a Lambda function to expose your Bedrock agent as an HTTP API. This Lambda function will handle multi-turn conversations by maintaining session context through the sessionId parameter.
1

Create Lambda function

  1. Navigate to AWS Lambda in the console
  2. Click Create function
  3. Choose Author from scratch
  4. Configure:
    • Function name: bedrock-agent-proxy
    • Runtime: Python 3.11 or later
    • Architecture: x86_64
  5. Click Create function
2

Add Lambda code

Replace the default code with the following:
Multi-turn Conversation Support: This Lambda function maintains conversation context across multiple turns using the sessionId. When Maxim simulates conversations, it passes the same sessionId for all messages in a conversation, allowing the Bedrock agent to remember previous interactions and maintain context.
import json
import uuid
import boto3
import logging
from botocore.exceptions import ClientError

# Configure logging
logging.basicConfig(level=logging.INFO)
logger = logging.getLogger(__name__)

# Initialize Bedrock client
bedrock_client = boto3.client("bedrock-agent-runtime", region_name="us-east-1")

# Replace these with your actual values
AGENT_ID = "4UDWU64G6Z"       # Your Agent ID
AGENT_ALIAS_ID = "YOUR_ALIAS"  # Your Alias ID

def lambda_handler(event, context):
    """
    Lambda handler to invoke Bedrock agent and maintain multi-turn conversations.
    The sessionId parameter enables conversation context across multiple turns.
    """
    try:
        # Parse incoming request body
        body = json.loads(event.get("body") or "{}")
        user_message = body.get("message", "")
        session_id = body.get("sessionId") or str(uuid.uuid4())

        if not user_message:
            return _response(400, {"error": "message is required"})

        logger.info(f"Invoking agent {AGENT_ID} with sessionId: {session_id}")

        # Call the Bedrock agent with sessionId to maintain conversation context
        # The same sessionId across multiple calls enables multi-turn conversations
        response = bedrock_client.invoke_agent(
            agentId=AGENT_ID,
            agentAliasId=AGENT_ALIAS_ID,
            sessionId=session_id,  # Maintains context across conversation turns
            inputText=user_message,
            enableTrace=True,  # Enable trace for debugging
            streamingConfigurations={
                "applyGuardrailInterval": 20,
                "streamFinalResponse": False
            }
        )

        # Process the streaming response
        completion_text = ""
        for event_stream in response.get("completion", []):
            # Collect agent output
            if "chunk" in event_stream:
                chunk = event_stream["chunk"]
                completion_text += chunk["bytes"].decode("utf-8")

            # Log trace output for debugging (optional)
            if "trace" in event_stream:
                trace_event = event_stream.get("trace")
                trace = trace_event.get("trace", {})
                for key, value in trace.items():
                    logger.info("%s: %s", key, value)

        logger.info(f"Agent response length: {len(completion_text)} characters")

        # Return the response with sessionId so Maxim can maintain continuity
        return _response(200, {
            "reply": completion_text,
            "sessionId": session_id,
        })

    except ClientError as e:
        logger.error("AWS Client error: %s", str(e))
        return _response(500, {"error": f"AWS error: {str(e)}"})

    except Exception as e:
        logger.error("Unexpected error: %s", str(e))
        return _response(500, {"error": "Internal server error"})

def _response(status_code, body_dict):
    """Helper function to format HTTP response"""
    return {
        "statusCode": status_code,
        "headers": {
            "Content-Type": "application/json",
            "Access-Control-Allow-Origin": "*",
        },
        "body": json.dumps(body_dict),
    }
Important:
  • Replace AGENT_ID and AGENT_ALIAS_ID with your actual values
  • The code includes enableTrace=True for debugging - you can set this to False in production if you don’t need detailed traces
  • Logs are sent to CloudWatch Logs for monitoring and debugging
3

Configure IAM permissions

  1. Go to Configuration → Permissions
  2. Click on the execution role
  3. Add the following policy to allow Bedrock access:
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "bedrock:InvokeAgent"
      ],
      "Resource": "*"
    }
  ]
}
4

Create Function URL

  1. Go to Configuration → Function URL
  2. Click Create function URL
  3. Auth type: Select NONE (or AWS_IAM if you want authentication)
  4. Configure CORS if needed
  5. Click Save
  6. Copy the Function URL - this is your endpoint for Maxim
5

Test the Lambda endpoint

Test your endpoint using curl:
curl -X POST https://your-lambda-url.lambda-url.us-east-1.on.aws/ \
  -H "Content-Type: application/json" \
  -d '{
    "message": "What are my investment options?",
    "sessionId": "test-session-123"
  }'
You should receive a response with the agent’s reply.
Multi-turn Conversation Support: The sessionId parameter enables conversation context. When you send multiple messages with the same sessionId, the Bedrock agent remembers previous messages and can reference them in responses. This allows for natural, contextual conversations where the agent can build on earlier information.

​
Step 4: Configure HTTP Endpoint in Maxim

Now, set up the Bedrock agent as an HTTP endpoint in Maxim:
1

Create a new HTTP endpoint workflow

  1. In Maxim, navigate to the Evaluate section
  2. Click on Agents via HTTP Endpoint or create a new workflow
  3. Name your workflow (e.g., “Financial Advisor Agent”)
2

Configure the endpoint

Set up your Lambda endpoint:Endpoint URL:
https://your-lambda-url.lambda-url.us-east-1.on.aws/
Method: POSTHeaders: Add the required header:
KeyValue
Content-Typeapplication/json
3

Configure the request body

Set up the message structure that your Lambda function expects:
{
  "message": "string",
  "sessionId": "string"
}
Map your variables:
  • message: The user message from your dataset (e.g., {{user_message}})
  • sessionId: Optional - can use {{sessionId}} or leave empty for auto-generation
Example:
{
  "message": "{{user_message}}",
  "sessionId": "{{sessionId}}"
}
Complete curl example for reference:
curl -X POST https://your-lambda-url.lambda-url.us-east-1.on.aws/ \
  -H 'Content-Type: application/json' \
  -d '{
    "message": "I want to invest $10,000. What are my options?",
    "sessionId": "sim-session-001"
  }'

​
Step 5: Create a Simulation Dataset

Create a dataset with financial advisory scenarios:
1

Navigate to Datasets

Go to the Library section and select Datasets
2

Create or import dataset

When creating your dataset, select the Agent simulation template. This will create a dataset with the following columns:
  • user_message: The initial message from the user to start the conversation
  • agent_scenario: Description of what the user is trying to accomplish
  • expected_steps: Step-by-step description of how you expect the agent to handle the scenario
Example dataset for a Financial Advisor agent:
user_messageagent_scenarioexpected_steps
”I want to invest $10,000. What are my options?”New investor seeking investment guidance with moderate budget1) Agent asks about risk tolerance and investment timeline; 2) Agent provides 3-4 investment options (stocks, bonds, ETFs, mutual funds); 3) Agent explains pros/cons of each; 4) Agent recommends specific allocation based on risk profile
”Should I invest in tech stocks right now?”Investor asking for advice on sector-specific investment timing1) Agent acknowledges the question about tech sector; 2) Agent explains current market conditions for tech; 3) Agent discusses risks and opportunities; 4) Agent asks about existing portfolio before giving specific recommendation
”I need to save for my child’s college in 10 years”Parent planning for education expenses with specific timeline1) Agent asks about target amount needed; 2) Agent asks about current savings; 3) Agent recommends 529 plan or similar education savings vehicle; 4) Agent suggests investment strategy based on 10-year timeline
”What’s my current portfolio performance?”Existing client checking portfolio status1) Agent asks for account identifier or authenticates user; 2) Agent retrieves portfolio data; 3) Agent presents performance metrics (returns, allocation, vs. benchmark); 4) Agent offers to discuss rebalancing if needed
”I’m retiring in 2 years. How should I adjust my investments?”Pre-retiree seeking portfolio rebalancing advice1) Agent congratulates on upcoming retirement; 2) Agent asks about retirement income needs; 3) Agent analyzes current allocation; 4) Agent recommends shifting to more conservative investments; 5) Agent explains withdrawal strategies

​
Step 6: Run Simulated Sessions

Now you can test your Bedrock agent with automated simulations:
1

Set up the test run

  1. Navigate to your HTTP endpoint workflow
  2. Click Test in the top right
  3. Select Simulated session mode
2

Configure simulation parameters

Dataset: Select the dataset you created with financial test scenariosEnvironment (optional): Choose if you have different environments configuredResponse fields to evaluate:
  • Output field: Select the field from the response that contains the agent’s reply (typically reply)
  • Context field (optional): Select fields containing retrieved context or tool outputs
Select evaluators: Choose evaluators to assess your agent:
  • Task Completion
  • Agent Trajectory
You can also browse the Evaluator Store to add more evaluators.
3

Trigger the test run

Click Trigger test run to start the simulation.The system will:
  1. Iterate through each scenario in your dataset
  2. Simulate multi-turn conversations based on the scenario
  3. Maintain conversation context using the sessionId parameter
  4. Evaluate the agent’s performance using your selected evaluators
  5. Generate a comprehensive report
4

Review results

Once complete, you’ll see a comprehensive test run report with:Test Summary (Left Panel)
  • HTTP endpoint and dataset information
  • Status overview (e.g., “15 Completed”)
  • Test run duration
  • Simulation cost and evaluation cost
  • Timestamp and author information
Summary by Evaluator
  • Pass/Fail status for each evaluator
  • Mean scores (e.g., 0.4/1)
  • Pass rates (e.g., 40%)
  • Visual indicators for performance
Latency Metrics
  • Minimum, maximum, and p50 latency
  • Helps identify Lambda cold starts or Bedrock agent performance issues
Detailed Results Table Each row shows:
  • Status: Whether the simulation completed successfully
  • Agent scenario: The financial scenario from your dataset
  • Expected steps: The expected agent behavior
  • sessionId: Unique identifier for each simulated conversation
  • Avg. latency (ms): Response time
  • Cost ($): Individual test cost
  • Tokens: Token usage per scenario
You can:
  • Click on any row to view the full conversation transcript
  • Sort by any column to identify patterns
  • Filter results to focus on specific scenarios
  • Export the report for compliance or analysis

​
Understanding Multi-turn Conversations

Bedrock agents natively support multi-turn conversations through the sessionId parameter. Here’s how it works in Maxim simulations:

​
How Session Context Works

  1. Session Initialization: When a simulation starts, Maxim generates a unique sessionId for each scenario
  2. Context Preservation: The same sessionId is passed with every message in that conversation
  3. Agent Memory: Bedrock stores all messages and agent responses for that sessionId
  4. Context Access: The agent can reference any previous information from the session

​
Example Conversation Flow

Turn 1 (sessionId: "abc123"):
User: "I want to invest $10,000"
Agent: "Great! What's your risk tolerance and investment timeline?"

Turn 2 (same sessionId: "abc123"):
User: "I'm comfortable with moderate risk, 5-year timeline"
Agent: "Based on your $10,000 investment and 5-year moderate risk profile,
       I recommend a balanced portfolio of 60% stock ETFs and 40% bonds..."
The agent remembers the $10,000 amount from Turn 1 and references it in Turn 2.

​
Session Lifecycle

  • Duration: Session data is stored by Bedrock for up to 1 hour by default
  • Isolation: Each scenario in your test run gets a unique sessionId for clean test isolation
  • Cleanup: After 1 hour of inactivity, session context is automatically cleared

​
Testing Context Retention

To test your agent’s ability to maintain context:
  • Create scenarios that require remembering information across multiple turns
  • Include follow-up questions that reference earlier parts of the conversation
  • Test edge cases like very long conversations or complex information tracking
Single turn vs. Simulated session: Single-turn testing is faster and cheaper but doesn’t test the agent’s ability to maintain context and handle follow-up questions. Use simulated sessions to test realistic conversation flows where the agent needs to remember previous context.

​
Resources

AWS Bedrock Agents

Learn about Bedrock Agents

Deploying Bedrock Agents

API Reference

Maxim Simulation Runs

Simulation Documentation
Need help? Reach out to Maxim support or check our community resources.
