LiveKit SDK

Introduction

LiveKit is a powerful platform for building real-time video, audio, and data applications. With Maxim’s integration, you can monitor and trace your LiveKit voice agents, capturing detailed insights into conversation flows, function calls, and performance metrics in real-time. This integration allows you to:

Monitor voice agent conversations in real-time
Trace function tool calls and their performance
Debug and optimize your voice AI applications

Requirements

"livekit",
"livekit-agents[google,openai]~=1.0",
"livekit-api",
"maxim-py",
"python-dotenv",
"tavily-python",

Environment Variables

Set up the following environment variables in your .env file:

LIVEKIT_URL=
LIVEKIT_API_KEY=
LIVEKIT_API_SECRET=
OPENAI_API_KEY=
MAXIM_API_KEY=
MAXIM_LOG_REPO_ID=

Getting Started

Step 1: Obtain API Keys

Maxim API Key

Sign up at Maxim Console
Create a new project or select an existing one
Navigate to API Keys section
Generate a new API key and copy your MAXIM_API_KEY
Go to Logs, create a new repository and copyMAXIM_LOG_REPO_ID

LiveKit Credentials

Set up your LiveKit server or use LiveKit Cloud, and create a new project.

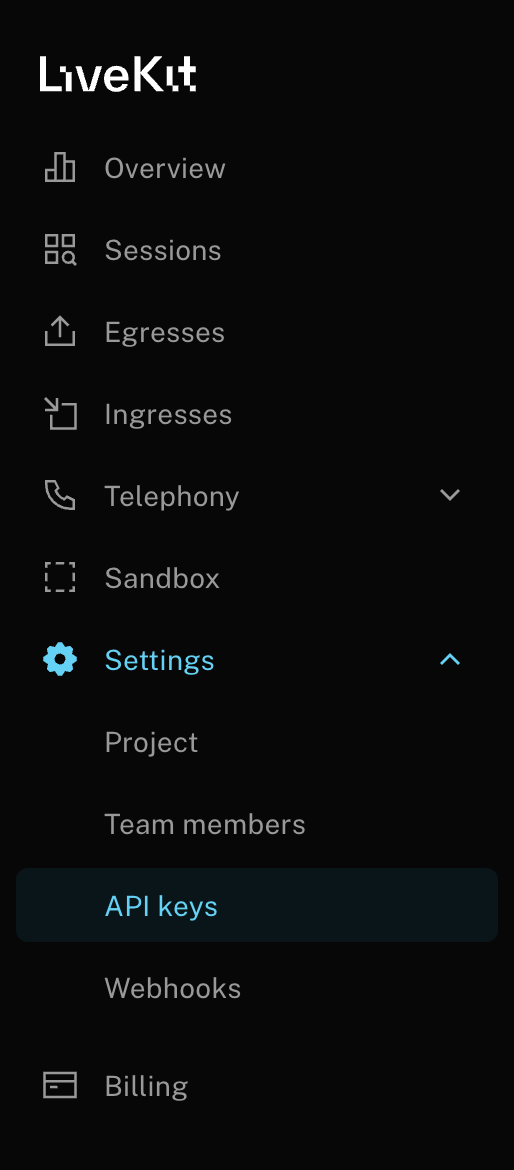

Get your server URL, API key, and API secret from the LiveKit dashboard
Configure the credentials in your environment variables

OpenAI API Key

Go to OpenAI Platform & create an API Key OpenAI Platform
Set the OPENAI_API_KEY environment variable

Step 2: Initialize Maxim Logger

import logging
from maxim import Maxim
from maxim.logger.livekit import instrument_livekit

# Initialize Maxim logger
logger = Maxim().logger()
# Automatically fetches MAXIM_API_KEY and MAXIM_LOG_REPO_ID from environment variables

# Optional: Set up event handling for trace lifecycle
def on_event(event: str, data: dict):
    if event == "maxim.trace.started":
        trace_id = data["trace_id"]
        trace = data["trace"]
        logging.info(f"Trace started - ID: {trace_id}")
    elif event == "maxim.trace.ended":
        trace_id = data["trace_id"]
        trace = data["trace"]
        logging.info(f"Trace ended - ID: {trace_id}")

# Instrument LiveKit with Maxim observability
instrument_livekit(logger, on_event)

instrument_livekit: This function integrates Maxim’s observability features with LiveKit Agents . It allows you to automatically capture and send trace data to the platform: logger = Maxim().logger() : This creates a Maxim logger instance that:

Connects to your Maxim project using the MAXIM_API_KEY and MAXIM_LOG_REPO_ID environment variables
Handles sending trace data to the Maxim platform
Provides the logging interface for capturing events, metrics, and traces

on_event : This is a callback function that gets triggered during trace lifecycle events:

event: A string indicating what happened ("maxim.trace.started" or "maxim.trace.ended")
data: A dictionary containing trace information:
- trace_id: Unique identifier for the trace
- trace: The actual trace object with metadata, timing, and other details

What it does:

When a new conversation or interaction starts → logs “Trace started”
When a conversation or interaction ends → logs “Trace ended”
Useful for debugging and monitoring trace lifecycle in real-time

Step 3: Create Your Voice Agent

import os
import uuid
import dotenv
from livekit import agents
from livekit import api as livekit_api
from livekit.agents import Agent, AgentSession, function_tool
from livekit.api.room_service import CreateRoomRequest
from livekit.plugins import google

dotenv.load_dotenv(override=True)

class Assistant(Agent):
    def __init__(self) -> None:
        super().__init__(
            instructions="You are a helpful voice AI assistant. You can search the web using the web_search tool."
        )

    @function_tool()
    async def web_search(self, query: str) -> str:
        """
        Performs a web search for the given query.
        Args:
            query: The search query string
        Returns:
            Search results as a formatted string
        """
        # Your web search implementation here
        return f"Search results for: {query}"

async def entrypoint(ctx: agents.JobContext):
    # Generate or use predefined room name
    room_name = os.getenv("LIVEKIT_ROOM_NAME") or f"assistant-room-{uuid.uuid4().hex}"

    # Initialize LiveKit API client
    lkapi = livekit_api.LiveKitAPI(
        url=os.getenv("LIVEKIT_URL"),
        api_key=os.getenv("LIVEKIT_API_KEY"),
        api_secret=os.getenv("LIVEKIT_API_SECRET"),
    )

    try:
        # Create room with configuration
        req = CreateRoomRequest(
            name=room_name,
            empty_timeout=300,        # Keep room alive 5 minutes after empty
            max_participants=10,      # Adjust based on your needs
        )
        room = await lkapi.room.create_room(req)
        print(f"Room created: {room.name}")

        # Create agent session with Gemini model
        session = AgentSession(
           llm=openai.realtime.RealtimeModel(voice="coral"),
        )

        # Start the session
        await session.start(room=room, agent=Assistant())
        await ctx.connect()

        # Generate initial greeting
        await session.generate_reply(
            instructions="Greet the user and offer your assistance."
        )

    finally:
        await lkapi.aclose()

# Run the agent
if __name__ == "__main__":
    opts = agents.WorkerOptions(entrypoint_fnc=entrypoint)
    agents.cli.run_app(opts)

This code - Creates a custom agent class:

Inherits from Agent: Base class for all LiveKit agents
instructions: System prompt that defines the agent’s personality and capabilities
Tells the agent: It’s a voice assistant that can use web search

Creates a callable tool:

@function_tool(): Decorator that registers this method as a tool the agent can call
async def: Asynchronous function (required for LiveKit agents)
Type hints: query: str -> str helps the AI understand input/output types
Docstring: Describes the function for the AI model
Current implementation: Placeholder that returns a formatted string

The main function that runs when the agent starts:

ctx: agents.JobContext: Contains information about the current job/session

Creates a unique room name:

First tries: Environment variable LIVEKIT_ROOM_NAME
Falls back to: Generated name like assistant-room-a1b2c3d4e5f6...
uuid.uuid4().hex: Creates a random hexadecimal string

Starts the agent and begins conversation:

session.start(): Connects the agent to the room
agent=Assistant(): Uses your custom Assistant class
ctx.connect(): Connects to the LiveKit infrastructure
generate_reply(): Makes the agent speak first with a greeting

Complete Example with Web Search

Here’s a complete example that includes web search functionality using Tavily:

import logging
import os
import uuid
import dotenv
from livekit import agents
from livekit import api as livekit_api
from livekit.agents import Agent, AgentSession, function_tool
from livekit.api.room_service import CreateRoomRequest
from livekit.plugins import google
from maxim import Maxim
from maxim.logger.livekit import instrument_livekit
from tavily import TavilyClient

dotenv.load_dotenv(override=True)
logging.basicConfig(level=logging.INFO)

# Initialize Maxim observability
logger = Maxim().logger()
TAVILY_API_KEY = os.getenv("TAVILY_API_KEY")

def on_event(event: str, data: dict):
    if event == "maxim.trace.started":
        trace_id = data["trace_id"]
        trace = data["trace"]
        logging.info(f"Trace started - ID: {trace_id}")
    elif event == "maxim.trace.ended":
        trace_id = data["trace_id"]
        trace = data["trace"]
        logging.info(f"Trace ended - ID: {trace_id}")

# Instrument LiveKit with Maxim
instrument_livekit(logger, on_event)

class Assistant(Agent):
    def __init__(self) -> None:
        super().__init__(
            instructions="You are a helpful voice AI assistant. You can search the web using the web_search tool."
        )

    @function_tool()
    async def web_search(self, query: str) -> str:
        """
        Performs a web search for the given query.

        Args:
            query: The search query string

        Returns:
            Search results as a formatted string
        """
        if not TAVILY_API_KEY:
            return "Web search is not available. Please configure the Tavily API key."

        tavily_client = TavilyClient(api_key=TAVILY_API_KEY)
        try:
            response = tavily_client.search(query=query, search_depth="basic")
            if response.get('answer'):
                return response['answer']
            return str(response.get('results', 'No results found.'))
        except Exception as e:
            return f"An error occurred during web search: {e}"

async def entrypoint(ctx: agents.JobContext):
    room_name = os.getenv("LIVEKIT_ROOM_NAME") or f"assistant-room-{uuid.uuid4().hex}"

    lkapi = livekit_api.LiveKitAPI(
        url=os.getenv("LIVEKIT_URL"),
        api_key=os.getenv("LIVEKIT_API_KEY"),
        api_secret=os.getenv("LIVEKIT_API_SECRET"),
    )

    try:
        req = CreateRoomRequest(
            name=room_name,
            empty_timeout=300,
            max_participants=10,
        )
        room = await lkapi.room.create_room(req)
        print(f"Room created: {room.name}")

        session = AgentSession(
            llm=openai.realtime.RealtimeModel(voice="coral"),
        )

        await session.start(room=room, agent=Assistant())
        await ctx.connect()

        await session.generate_reply(
            instructions="Greet the user and offer your assistance."
        )

    finally:
        await lkapi.aclose()

if __name__ == "__main__":
    opts = agents.WorkerOptions(entrypoint_fnc=entrypoint)
    agents.cli.run_app(opts)

What Gets Traced

Agent Conversations

Transcript containing System Instructions, User and Assistant Messages are pushed to Maxim

Running Your Agent

Working code is uploaded here - https://github.com/maximhq/maxim-cookbooks/blob/main/python/observability-online-eval/livekit/livekit-gemini.py
Start your LiveKit server (if self-hosting) or ensure your LiveKit Cloud instance is running

Run your agent:

uv sync
uv run livekit-gemini.py console

Troubleshooting

Common Issues

Agent not connecting to LiveKit:

Verify your LiveKit credentials are correct
Check that your LiveKit server is accessible

Traces not appearing in Maxim:

Confirm your MAXIM_API_KEY and MAXIM_LOG_REPO_ID are set correctly
Check the Maxim console for any API errors

Resources

LiveKit Docs

Official LiveKit documentation

Maxim Docs

Official Maxim documentation
